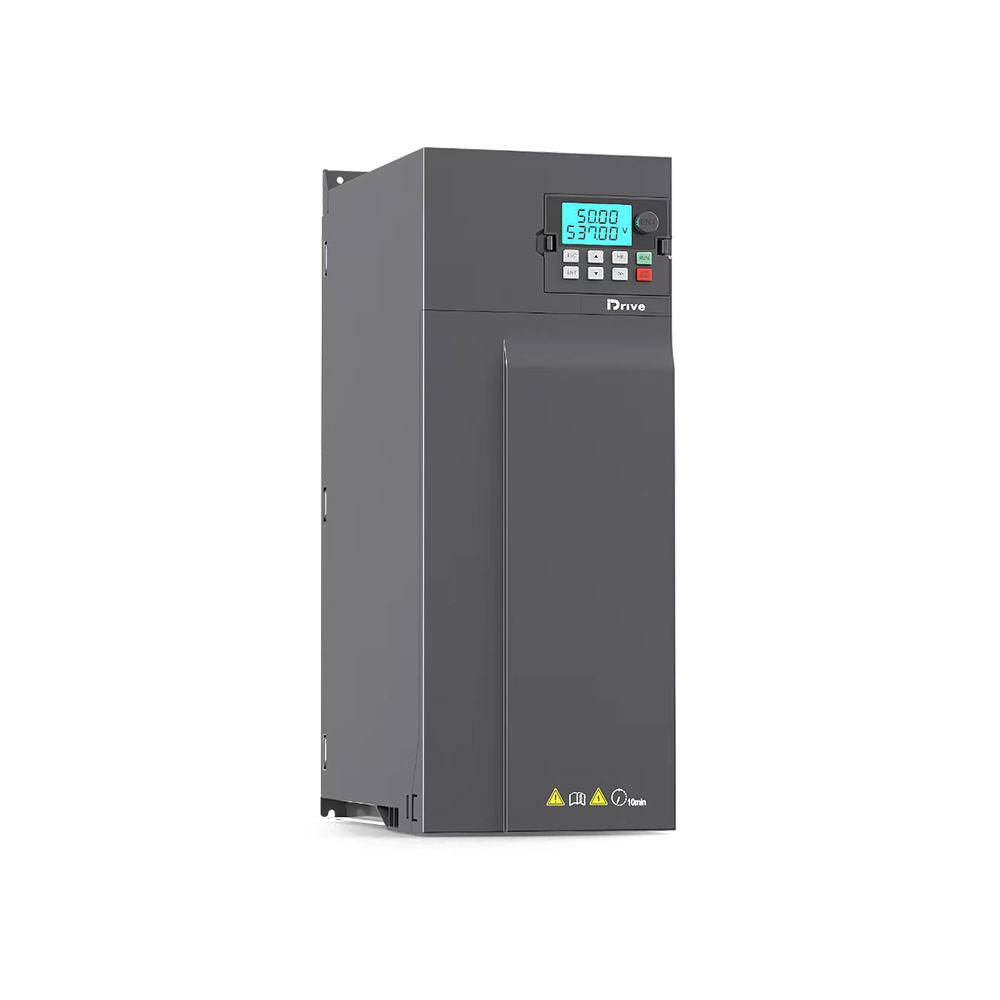

ID200 Book-style General Purpose VFD
ID200 is a high-performance vector drive designed by iDrive. It has the control functions of synchronous motors and asynchronous motors. Its excellent vector control performance can realize the integration of torque control and speed control, and it can operate stably under various complex working conditions. Integrated G/P model for heavy&light duty, improves the heat dissipation capacity, reliability, and environmental adaptability, and meets more application ranges. It is equipped with various parameter macros, such as: PID, multi-pump design, and a thicker circuit board coating, which can adapt to various harsh environments.
Widely used in metal processing, textile, lifting, papermaking, petroleum, chemical industry, plastics, printing and packaging, compressors, etc.
Related products
Product Features
Power range: 3AC 220V 0.75kw~22kw / 3AC 380V 0.75kw~500kw
1. INNOVATE MODULAR STRUCTURE:
-
-
- Book-style design saves cabinet space and cost significantly.
- Modular design, comprehensive expansion interface and rich accessory
- Optimized and convenient keypad, new dual display external keypad
-
2. EXCELLEN DRIVING PERFORMANCE:
-
-
- Support asynchronous & synchronous motors, open loop & close loop control
- High starting torque SVC: 0.5Hz/150%; FVC: 0.0Hz/180%
- G/P dual rating, built-in braking unit & DCR
- Current and torque limiting functions, Overvoltage suppression function
-
3. FULL RANGE THREE-PHASE CURRENT DETECTION:
-
-
- Three-phase current detection, with faster response and higher control accuracy
- Provide fast and timely protection against output phase loss and imbalance
- Enhance motor's protection against ground short circuits
-
Product Specification
| Function | Specification | |
| Power input | Input voltage (V) | AC 3PH 220V(-15%)~240V(+10%) AC 3PH 380V(-15%)~440V(+10%) AC 3PH 525V(-15%)~690V(+10%) |
| Input frequency (Hz) | 50Hz or 60Hz, allowable range: 47–63Hz | |
| Power output |
Output voltage (V) | 0～rated input voltage |
| Output frequency | 0Hz〜400Hz | |
| Overload capacity | G type: 150% of rated current 60s, 180% of rated current 10s | |
| P type: 110% of rated current 60s, 150% of rated current 10s | ||
| Control performance |
Control mode | SVC, FVC, and V/f control |
| Motor type | Asynchronous motor, permanent-magnet synchronous motor,Synchronous Reluctance Motor | |
| Starting torque | 0.25Hz/150% (SVC) 0Hz/200% (VC) |
|
| Speed regulation ratio | SVC:1:200; V/F:1:100 | |
| Speed control precision | SVC:±0.5%; V/F:±0.1% | |
| Torque response | SVC: <=40ms; V/F: <=100ms | |
| Carrier frequency | 0.5kHz ~ 16.0kHz | |
| V/f curve | Multiple modes: Straight-line V/f curve, multi-point V/f curve, square V/f curve and V/f separation curve | |
| DC braking | DC braking frequency at start: 0.00 ～ Max.set frequency DC braking time: 0.01 ～ 36.00s (0.0: no action) DC braking current: 0.0 ～ 100.0% (rated current) |
|
| Interfaces | Field-bus | Modbus-RTU by RS485 interface, support PROFINET、PROFIBUS-DP by extension card |
| Digital input | <=22kw: 4 common inputs, the Max. frequency 1kHz; 1 high-speed input(Max. frequency 50kHz), can be extended to 5 inputs. >22kw: 8 common inputs, 1 of which can be used as high-speed input |
|
| Digital output | <=22kW: 1 high speed output, 1 DO collector output can be extended; >22kw: 2 multi-function collector outputs, 1 of which can be used as high-speed output |
|
| Analog input | <=22kW: 1 input 0 ~ 10V / 0 ~ 20mA, 2 inputs can be extended >22kw: 2 inputs, AI1: 0 ~ 10V / 0 ~ 20mA; AI2: -10 ~ 10V |
|
| Analog output | <=22kW: 1 output 0 ~ 10V / 0 ~ 20mA, 1 output1 can be extended >22kw: 2 outputs, AO1,AO2: 0 ~ 10V / 0 ~ 20mA |
|
| Relay output | <=22kw: 1RO, 1RO can be extended >22kw: 2RO Contact capacity: 3A/AC250V, 1A/DC30V |
|
| LED Display | Can display 20 parameters such us frequency setting, frequency out, voltage output, current output, etc. | |
| Parameter backup | Support upload and download | |
| Keypad lock & functions | Support partial or full keypad lock, define partial keypads functions to prevent misconfigurations. | |
| Extension interface | 1 extensiton interface: I/O card, PROFIBUS-DP card, PROFINET card, encoder PG card, PT100/1000 card. | |
| LED Display | Dual-row 5-bit LED display, can monitor 2 inverter parameters simultaneously. | |
| Parameters copy | LCD keypad support parameters uploading/downloading/quick copy | |
| Keypad lock & functions | Support partial or full keypad lock, define partial keypads functions to prevent misconfigurations. | |
| LCD Display | Optional multi-function LCD, support multi-language | |
| Status monitoring | Output frequency, set frequency, output current, output voltage, bus voltage, motor speed, PID setting, PID feedback, AI input, module temperature, etc. | |
| Environment | Operating location | Indoor without direct sunlight, dust, corrosive gas, combustible gas, oil, mist, water vapor, drip, or salt |
| Altitude | <1000m, above 1000m, derate 1% every aditional 100m. | |
| Operating temperature | -10°C–50°C, derate above 40°C | |
| Humidity | 5 ~ 95% RH (no condensation) | |
| Vibration | less than 5.9m/s² (0.6g) | |
| Storage temperature | －40℃～＋70℃ | |
| Structure | IP rating | IP20 |
| Cooling methods | Fan cooling | |
| Braking Unit | Embedded <=37kw, optional above 45kw | |
| DC reactor | Optional embeded DC reactor >=45kw | |
| Installation method | Wall-mounting, floor-mounting | |
| Efficiency | 97% | |
